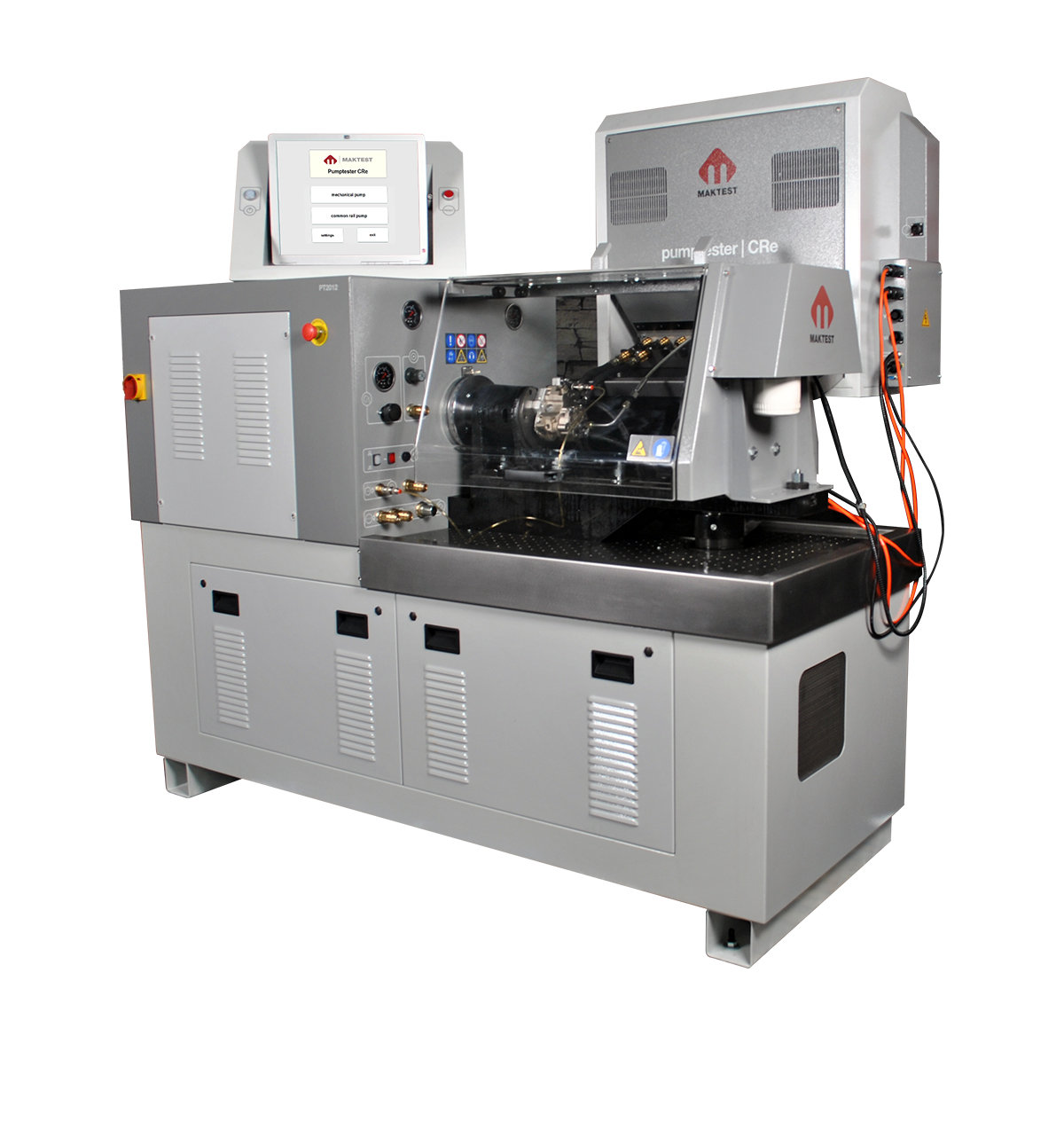

PT2012 CRe
Mechanical & Common Rail Pumps
PT2012 CRe Mechanical & Common Rail Pump Test BenchPT2012.CRe is one of the well proven Mechanical Test Benches in the market. With its capability to test Common Rail Pumps, it sets a distance to its competitors and proves itself investment worthy.Testing common rail pumps are becoming tough with each new generation of common rail systems. More precise pressure controls, precise metering along with very precise speed control is now required for testing new generation CR pumps. More information
Dimensions Machine Dimensions
Width: 1580 mm
Depth: 840 mm
Height: 1570 mm
Weight: 670 kg
Width: 1880 mm
Depth: 1000 mm
Height: 1770 mm
Weight: 800 kg
Technical Specifications
High Pressure System
Test Oil Supply System
Lube Oil Supply System
Instrumentation
Computer
Utilities
| HP Pump Motor | 15 kW. Speed Control between 50-3500 rpm. |
|---|---|
| Max Pressure | 2200 bar |
| Pressure Regulator | Bosch |
| Tank | 50 L |
|---|---|
| LP Supply Pump | 9 L/min, max 10 bar |
| Heater | 2kW |
| Cooling System | Air Cooled, 4 L/min ∆T |
| Filter | 5µ |
| Tank | 24 L |
|---|---|
| Lube Oil Pump | 9 L/min, max 10 bar |
| Filter | 100 µ mesh |
| HP Sensor | Bosch 2200 bar (on the rail) 1 bar Resolution, 1% Accuracy. |
|---|---|
| Flow Sensor | Gear Type; 0-4000 mm3/rev, 1 mm3/rev Resolution, 1% Accuracy. |
| LP Supply Pressure | 0-10 bar, 0.1 bar Resolution, 0,1% Accuracy |
| LP Return Pressure | 0-10 bar, 0.1 bar Resolution, 0,1% Accuracy |
| Lube Oil Pressure | 0-15 bar, analogue, 7% Accuracy |
| Temperature | 15-120 °C, 0.1°C Resolution, 1% Accuracy |
| Processor | Dual Core 1.86 Ghz or X5 28350 1.44 Ghz |
|---|---|
| RAM | 2 GB |
| HD | SSD 64 GB |
| Monitor | 15" Touch Screen /Wide |
| OS | Windows 10 |
| Electricity | 360-415 VAC 3 ph, 50 or 60 hz. |
|---|---|
| Air Supply | min 5 bar, min 10L/min, dry and oil free |
